Planning a Residential Driveway Slab from Survey to Forms
Decisions that happen before the first shovel

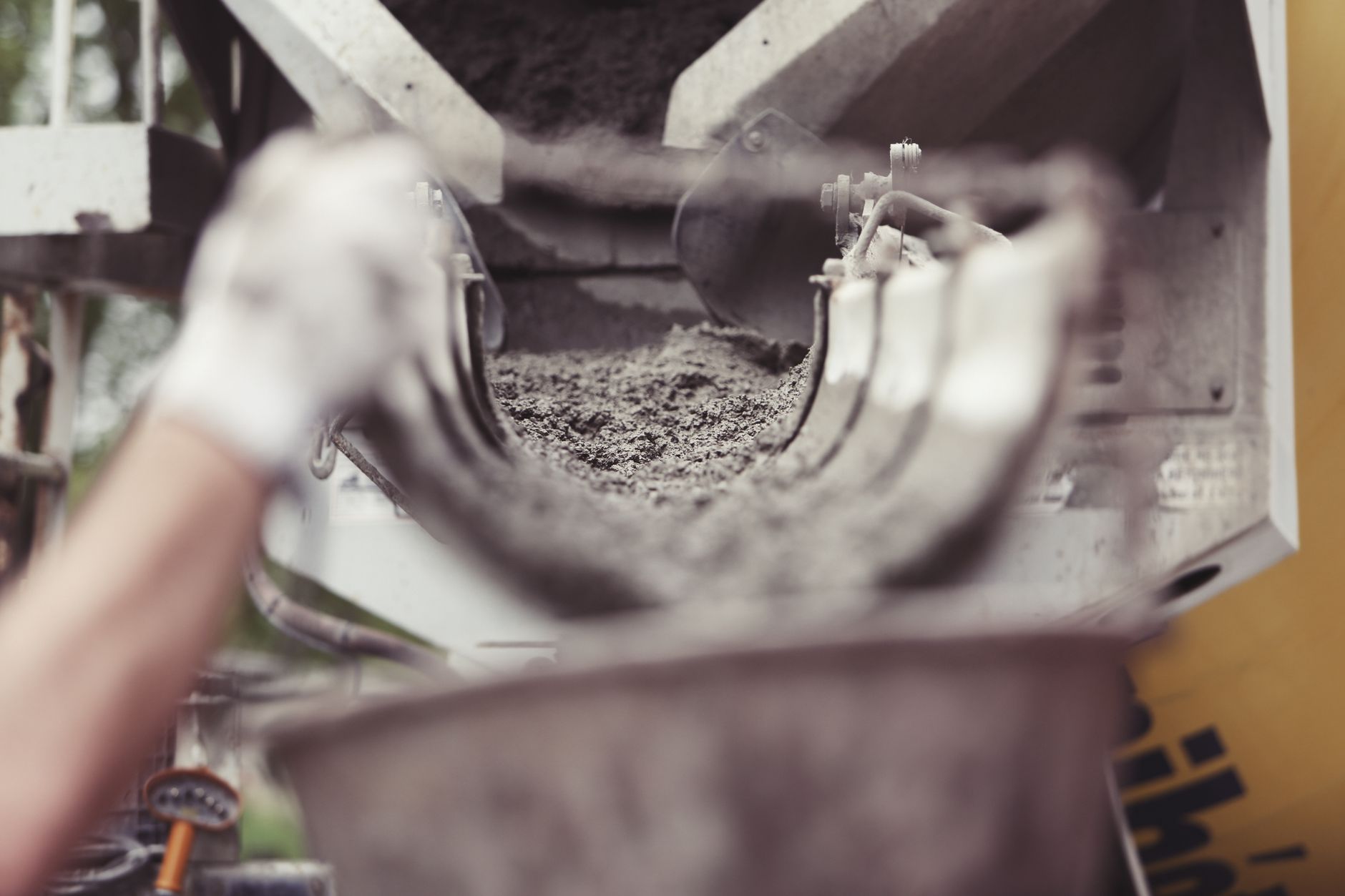

By the time a concrete truck arrives, most of the quality of a driveway has already been decided. Width, shape, elevation, drainage direction and the way the slab meets the street and garage were fixed on paper or on the ground days earlier. This article follows the planning sequence in the order a careful contractor tends to work, from first measurements to the moment the forms are ready to receive concrete.
Measure and sketch the existing conditions
Planning begins with a measured sketch. The key dimensions are the width at the street, the width at the garage, the length from curb to door and the position of anything fixed along the way, such as a utility box, a tree, a post or a wall. A tape measure and a notebook are enough for a homeowner, and a contractor will usually add a level or laser to capture the heights.
Heights matter as much as widths. The garage floor is the highest fixed point on most driveways, and the street gutter is the lowest. Everything in between has to link those two heights in a smooth line without trapping water or scraping low bumpers. Take note of the drop between them. A long, gentle fall is forgiving, while a short, steep one can force awkward transitions.
Decide how the driveway will be used
A driveway is not just a path for one car. Think about every vehicle and activity that touches it: two cars side by side, a visiting guest, a trailer, a work van, a delivery truck, basketball, chalk drawings, a bike lane for children. The answers help set width, thickness and surface texture.
Heavier loads call for a stronger design. A slab that carries a single compact car can be built lighter than one that sees a loaded truck regularly, and the base under it should reflect that. Write down the heaviest vehicle that will realistically use the surface, even if it only visits a few times a year, and share it with the contractor.
Turning space is another overlooked point. A driveway that forces backing out into a busy street is a safety problem. Where the lot allows, a wider apron or a small turning area makes daily life easier, and it is far simpler to include in the first pour than to add later with a cold joint.
Check the rules that apply
Most residential areas limit driveway width at the curb, setbacks from side property lines and the amount of the front yard that can be paved. Homeowners associations may add their own rules about material, color and edging. The public part of the driveway, where it crosses the sidewalk and meets the street, is usually regulated by the local government and may require a permit and inspection.
It is worth contacting the building or public works office early and asking what applies. A call that takes ten minutes can save a tear-out. The longer project articles on concrete contractor carlsbad notes give a sense of how these questions come up on real properties and how they were handled.
Also check for easements, which are legal rights that allow a utility or neighbor to use part of the property. Pouring a slab over an access easement or a utility line may be prohibited or may need special treatment.
Locate what is buried
Under many driveways run irrigation lines, electrical conduit, gas lines, sewer laterals or cable. Demolition and excavation can hit them, and a cut line creates delay and expense. Before digging, call the regional underground service alert line, which routes requests to utility companies so they can mark their lines. Private lines, like irrigation and low-voltage lighting, are not marked by utilities, so ask the owner or an installer where they run.
If a line must remain under the slab, consider placing it in a sleeve, a pipe that lets the line be pulled out later without breaking concrete. Adding a spare sleeve for future wiring or irrigation is a small step that pays off when needs change.
Set the layout and the geometry
With the constraints known, the layout can be drawn. Straight edges and gentle curves are easier to form and finish than tight, complicated shapes. Sharp inside corners tend to attract cracks, so rounding them or planning a joint to meet them helps. Long, narrow panels crack more than squarish ones, so the layout of the slab and its joints are planned together.
Edges deserve thought. A driveway that ends at a planting bed, a lawn or a neighbor's property needs support along the edge so that soil does not erode under it. Thickened edges, sometimes called a turned-down edge, add strength where a heavy wheel might ride near the boundary. Whether that is needed depends on the soil and the load, and the contractor should say so.
Plan elevations and drainage
This is the step that homeowners often skip and later regret. Decide where water will go. On a flat lot, the surface is usually pitched away from the garage and toward the street or a planted area. On a sloped lot, the natural fall may already carry water, but it should be guided so that it does not pool at the garage threshold or race off the edge and wash out the soil.
A common approach is to draw spot elevations at key points: garage threshold, mid-driveway, apron and gutter. A string line stretched between stakes then shows whether the planned surface produces a continuous, even slope. If a section is flat or backwards, the plan can be adjusted on paper rather than after the pour.
Choose thickness, reinforcement and joint pattern
Once the geometry is known, the structural pieces follow. The thickness, the reinforcement and the joint pattern are chosen to suit the load and the ground. Those decisions belong in the written scope, so that a homeowner can compare them against what is built. Each has its own page in this section of the site, and each is worth reading before the contract is signed.
The finish is the last design choice and the one most visible. A broom texture is a reliable default for a surface that gets wet, while decorative finishes need a clear scope and a crew that has done them before.
From plan to forms
After the ground is excavated and the base compacted, the crew transfers the plan to the site. Stakes go in at corners and along the edges, with marks that show the finished height of the concrete. String lines or a laser establish the plane. Boards or metal forms are then set against the stakes, aligned to the marks and braced so that the weight of wet concrete will not push them out.
A final inspection before the pour should check the following:
- Forms are straight, tight to the stakes and at the planned height.
- The base is firm, evenly shaped and free of loose material.
- Reinforcement is lifted off the ground and tied where it overlaps.
- Sleeves and embedded items are in place and marked.
- The slope matches the drainage plan.
- Access for the truck or pump is clear.
That list is short, and it catches most pour-day surprises. If anything is off, adjusting it takes minutes before the concrete arrives and hours, or a redo, afterward.
Keep a record
Take photos at every stage: the old surface, the exposed ground, the base, the forms, the reinforcement. They cost nothing and answer questions years later, when a plumber needs to know what is under the slab or a buyer asks how it was built. A well-planned driveway is one whose plan you could explain to someone else, and whose paperwork matches what is in the ground.
